Processing of Geometries

This document explains the steps that geospatial boundary data goes through between being submitted by a Local Planning Authority (LPA) and appearing on the Planning platform at planning.data.gov.uk.

It is intended for both internal staff and for LPAs or councils who want to understand why a boundary they submitted may look slightly different on the platform.

Background

When an LPA publishes geospatial data — for example, conservation area boundaries, listed building outlines, or Article 4 direction areas — we ingest it into the Planning Data pipeline. During that process, the raw geometry is transformed to ensure it is in a consistent, valid, and web-friendly format.

Some of these transformations are purely administrative (e.g. converting coordinate systems), but others are designed to fix common geometry defects and can result in a visible difference between the original submission and what is shown on the platform.

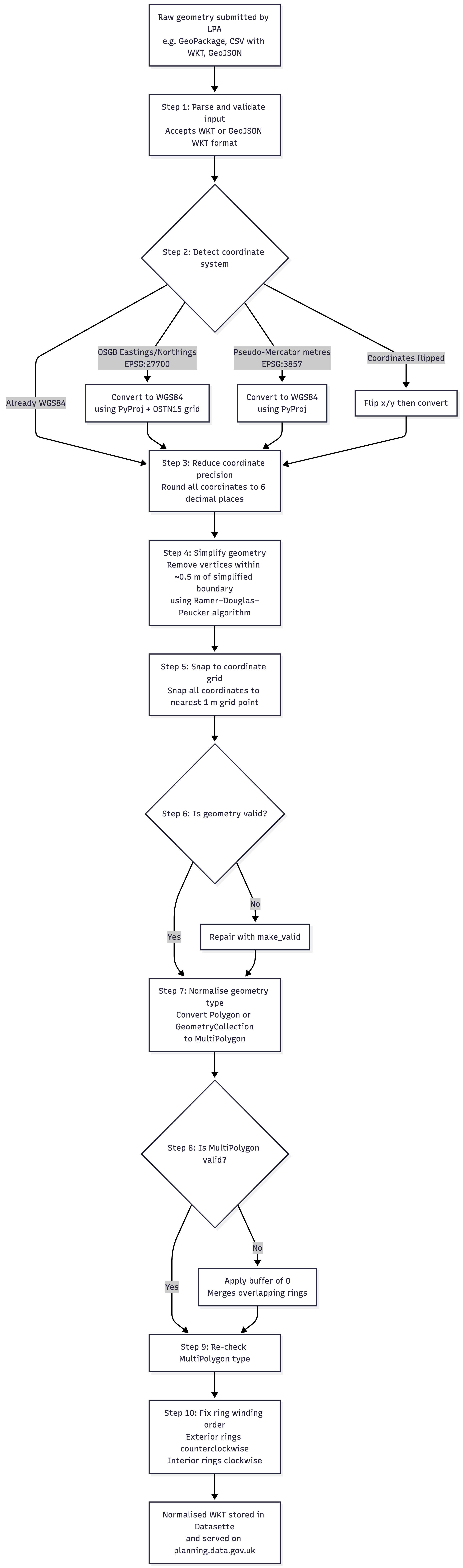

The Pipeline at a Glance

Step-by-Step Explanation

Step 1 — Parse and validate input

The pipeline accepts geometry as Well-Known Text (WKT) or as a GeoJSON geometry string. If the input cannot be parsed as either format, the record is rejected and an issue is logged.

Step 2 — Detect and convert coordinate system

Submitted data can use different coordinate reference systems (CRS). The pipeline inspects the magnitude of the raw coordinates to detect which system is in use, then converts everything to WGS84 (longitude/latitude, EPSG:4326), which is the standard used by web mapping and the platform.

Detected CRS	Conversion applied
WGS84 (EPSG:4326) — degrees in range ±60	No conversion needed
British National Grid / OSGB (EPSG:27700) — Eastings/Northings	Converted using PyProj + OSTN15 correction grid
Pseudo-Mercator (EPSG:3857) — metres	Converted using PyProj (no datum shift needed — same ellipsoid)
Any of the above with x/y axes swapped	Axes are flipped before conversion

If the coordinates cannot be matched to any known system, or if the resulting point falls outside England, the record is rejected.

Step 3 — Reduce coordinate precision to 6 decimal places

Every coordinate in the geometry is rounded to 6 decimal places. At UK latitudes, 6 decimal places corresponds to roughly 11 cm of precision. This prevents very high-precision coordinates (which can be an artefact of coordinate conversion) from undermining the validity repairs that follow.

This step is lossier for data that has been converted from OSGB, because the conversion produces coordinates with many decimal places that are then truncated. For data already in WGS84, the change is smaller.

Step 4 — Simplify the geometry

The pipeline applies Ramer–Douglas–Peucker simplification with a tolerance of 0.000005 decimal degrees (approximately 0.5 m). Any vertex that lies within 0.5 m of the straight line between its two neighbours is removed. This reduces the number of vertices stored and helps resolve near-collinear vertices that can cause validity errors, particularly in data that has been converted from OSGB or Mercator.

Note: Increasing the coordinate precision (e.g. from 6 to 7 or 8 decimal places) does not reduce the impact of this step — it makes it slightly worse, because finer coordinates give the simplifier more vertices to evaluate and remove.

Step 5 — Snap coordinates to a 1 m grid

After simplification, all coordinates are snapped to the nearest point on a 0.000001 decimal degree grid (roughly 1 m spacing). This is a second precision-reduction step and helps ensure that nearby vertices that are geometrically near-identical are merged, which can prevent self-intersection errors.

Step 6 — Repair invalid geometry

If the geometry is invalid at this point (e.g. self-intersecting rings, duplicate vertices), the pipeline applies Shapely’s make_valid function to produce a valid geometry. The nature of the original invalidity is logged as an issue.

For most well-formed submissions this step is skipped. It is most commonly triggered by geometries that have been converted from OSGB and contain near-collinear or overlapping vertices.

Step 7 — Normalise to MultiPolygon

The platform stores all polygon geometries as MultiPolygons (a single geometry type that can represent one or more polygons). This step converts:

A single Polygon → MultiPolygon containing one polygon
A GeometryCollection → MultiPolygon extracting only the polygon members

This is a lossless structural change; no coordinates are altered.

Step 8 — Buffer repair for invalid MultiPolygons

If the MultiPolygon produced in Step 7 is still invalid — which can happen when simplification causes overlapping rings within a geometry collection — a buffer(0) operation is applied. This merges overlapping rings and typically resolves the remaining invalidity.

Step 9 — Re-check MultiPolygon type

The buffer operation can sometimes convert a MultiPolygon back to a single Polygon. This step re-wraps the result in a MultiPolygon if necessary.

Step 10 — Fix ring winding order

The OGC specification for WKT requires that exterior rings are oriented counterclockwise and interior rings (holes) are oriented clockwise. The pipeline enforces this using Shapely’s orient function. This is a lossless operation.

Output

After these steps the geometry is serialised back to WKT with 6 decimal places and stored in the platform’s Datasette database. This is the geometry that appears on planning.data.gov.uk.

What Does It Mean in Practice?

The Barnet case study

This investigation was triggered by Barnet Council, who noticed that their submitted conservation area boundaries looked different on the platform from their source GeoPackage. Using the Totteridge conservation area (entity 44002422) as a case study, the pipeline was stepped through manually to quantify the impact of each stage.

Barnet’s data is already in WGS84 and is high-detail — the Totteridge boundary had 2,971 vertices in the raw source.

Step	Vertices retained	Cumulative deviation from raw
Raw source	2,971	—
After 6 d.p. round-trip	2,971	224 m²
After simplification	520	1,010 m²
After coordinate snapping	520	858 m²

The simplification step removed 82% of vertices and caused approximately 1,000 m² of boundary deviation. The same pattern was confirmed across multiple Barnet conservation areas and in high-detail data from other LPAs.

Without simplification, the only difference from the raw source would be 0.12 m² — negligible floating-point rounding.

When the pipeline makes little or no visible difference

For geometries that are already simple and coarse — for example, listed building outlines with 11–19 vertices — the simplification step has few or no vertices to remove and the pipeline introduces no meaningful change.

What this means for LPAs

LPA data	Expected impact
Simple geometry (few vertices), already in WGS84	Minimal — sub-2 m² floating-point rounding only
High-detail geometry, already in WGS84	Simplification will remove a significant proportion of vertices and introduce measurable boundary deviation
Geometry in OSGB (British National Grid)	CRS conversion introduces some precision loss, then simplification applies on top

Summary of Key Findings

Finding	Detail
Simplification is the primary cause of boundary change	Removes ~80% of vertices and introduces ~1,000 m² of deviation in high-detail Barnet data
Precision round-trip contributes a smaller but non-zero change	~224 m² for Barnet Totteridge
Coordinate snapping adds no further vertex removal	Effect is negligible once simplification has run
Removing simplification reduces deviation to <1 m²	Equivalent to floating-point rounding only
Impact varies by geometry complexity	Simple, coarse geometries are largely unaffected; high-detail geometries see greater vertex reduction
The platform geometry matches Datasette	Confirmed — the pipeline runs consistently end-to-end
